Description

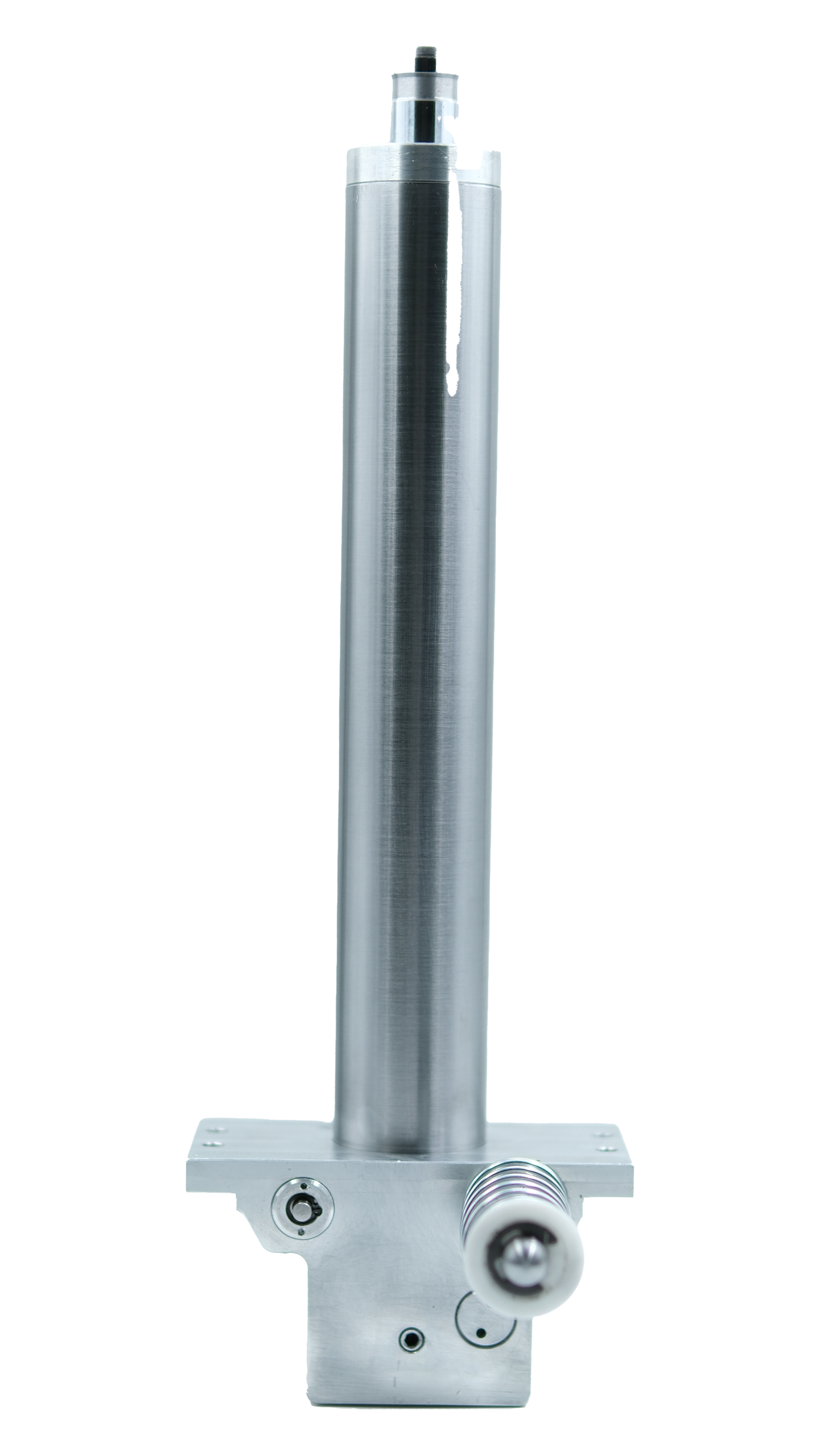

Hydraulic linear actuator for stretchers and transportation
reliable and self-contained to be copied in their cars
It is a controlled actuator. The pump cylinder, valves and
reservoir in a maintenance-free unit.
unified.
Stretcher actuator with integrated guide
High internal loads can be lifted. stretcher or car
no additional actuation or support in its design
There is no need for ratios, this mechanism
Thanks to the production cost of the stretcher or cart
may fall. Easy to install and working life
is long.

TECHNICIAL SPECIFICATIONS

• STROKE: 280-330 mm
• LENGTH: 350-440 mm
• MAX. DYNAMIC FORCE: 4.5 kN
• MAX. STATIC LOAD: 8 kN
• MIN. PUMP STROKE: 17-20 mm
• DESCENT TIME: 4-8 sec
